Triade Concealed Mounting Bracket

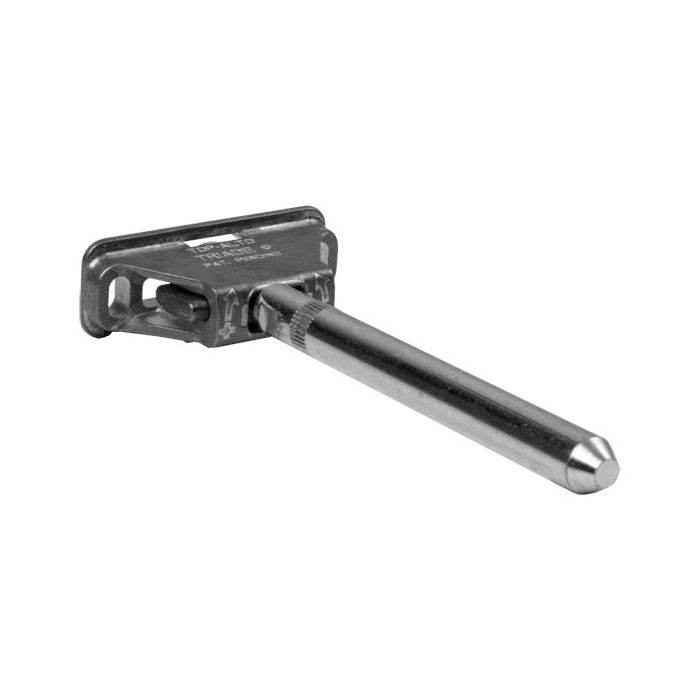

TRIADE is a concealed mounting bracket made of Zinc alloy and steel for shelves 25 to 40mm thick. It has been conceived to simplify the shelf installation. It is provided with three independent adjustments: VERTICAL Before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots. HORIZONTAL While placing the shelf in position, the supporting pins can be slided horizontally. INCLINATION When the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench. The capacity loading is 15Kg each (shelf weight included) for a shelf max 300mm deep for the STANDARD version and 20Kg each (shelf weight included) for a shelf max 400mm deep for the MAXI version.
Grouped product items
Product Name Stock Number Qty
"Triade Standard" Concealed Shelf Bracket Adjustable (15 kg/bracket) min. 25-40 mm shelves

SKU: 202854

Attributes:

  • Unit: 1 Piece
  • H: 22,8 mm
  • L: 150
  • Maximum Load Capacity: 15 kg/pcs
320
"Triade Maxi" Concealed Shelf Bracket Adjustable (20 kg/bracket) min. 40 mm shelves

SKU: 203195

Attributes:

  • Unit: 1 Piece
  • H: 28,5 mm
  • L: 150
  • Maximum Load Capacity: 20 kg/pcs
139
Triade Standard Bracket

SKU: 207894

Attributes:

  • Unit: 1 Piece
  • H: 20 mm
  • L: 60+4 mm
  • Maximum Load Capacity: 15 kg/pcs
112
Triade Maxi Bracket

SKU: 209406

Attributes:

  • Unit: 1 Piece
  • H: 23,5 mm
  • L: 60+4 mm
  • Maximum Load Capacity: 20 kg/pcs
86
Pan Head Machine Screw M5x12 PZ2

SKU: 209407

Attributes:

  • Unit: 1 Piece
  • H: -
  • L: -
621
