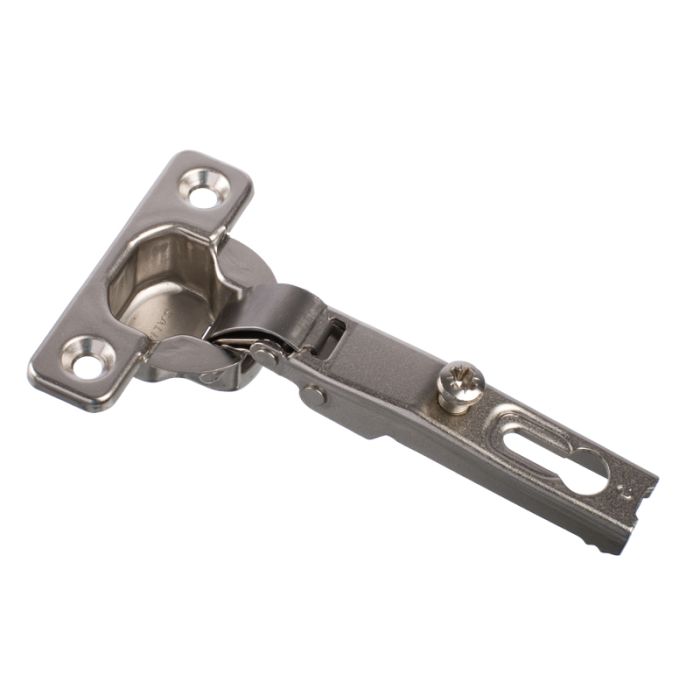

SALICE Mini Hinge Series 600 94° Full Overlay C6A5C99

SALICE Series 600 Concealed Mini Hinge for full overlay door, without spring.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
- Without spring

Mounting plate is not included and has to be ordered separately.
More Information
SKU201819
Weight (Kg)0.038000
K3-8 mm
Drilling depth11,5 mm
ø26 mm
H=H=12,5+K-(D)
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA94°
DP38 x 7,5
Downloads
pdf
(Size: 701 KB)

Mounting plates for Serie 600, 800 and 900
