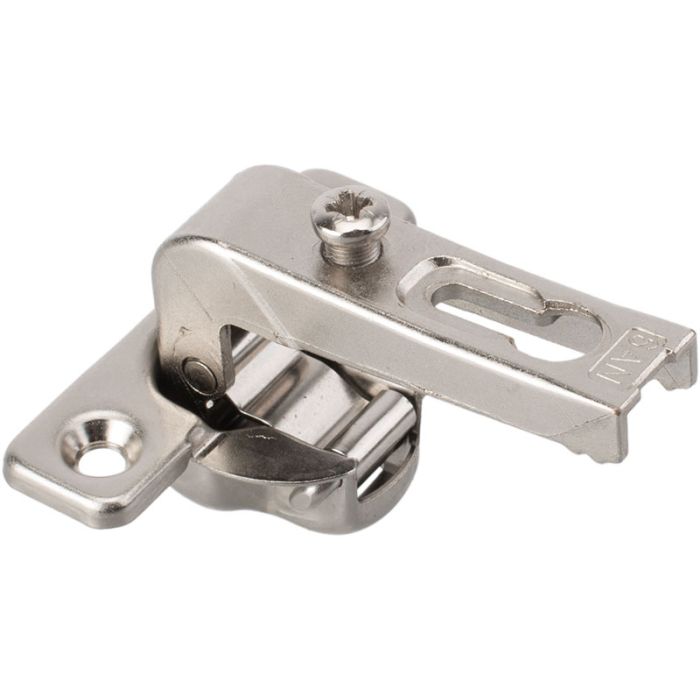

SALICE - Mini Hinge Series 600 94° C6A7N99

SALICE Series 600 Mini Hinge for small spaces 94° Opening angle.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- For small spaces
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
- Compatible with mounting plate B2SGH (28x32 mm drilling)

Mounting plate is not included and has to be ordered separately.
More Information
Weight (Kg)0.041000
K3-8 mm
Drilling depth11,5 mm
ø26 mm
FixingsWood Screw
FinishNickel Plated
DP38 x 7,5
(Size: 701 KB)

Mounting plates for Serie 600, 800 and 900
