SALICE - Hinge Series Push 165° Full Overlay C2USD99

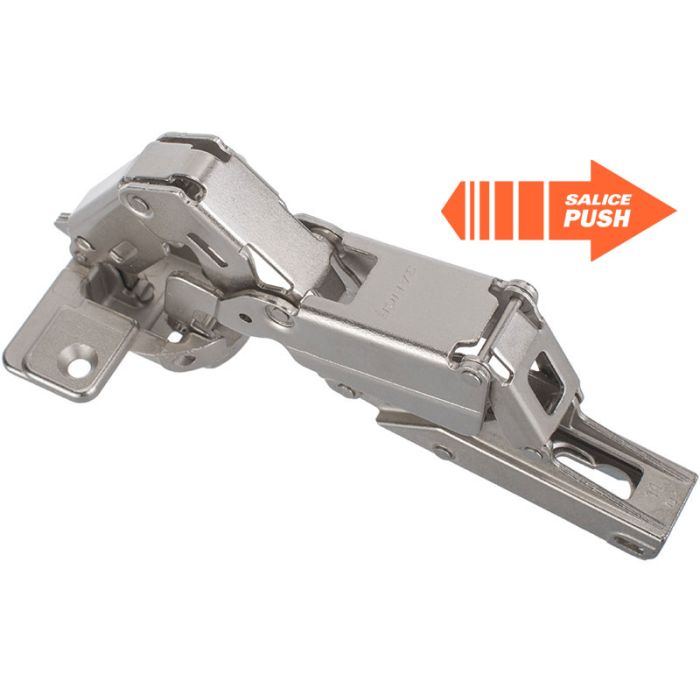

SALICE Series Push 165° Concealed hinge for full overlay door, with negative spring 'Push to Open', C2USD99. Must be combined with Release Device.

Technical information
- With negative spring (Push to open)
- 165° Opening angle
- Hole pattern: 52 x 5,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate and release device is not included and has to be ordered separately.
More Information
SKU203001
Weight (Kg)0.161000
K3-8 mm
Drilling depth11 mm
ø35 mm
H=H=10+K-(D)
MaterialSteel / Zamak
FixingsWood Screw
FinishNickel Plated
OA165°
