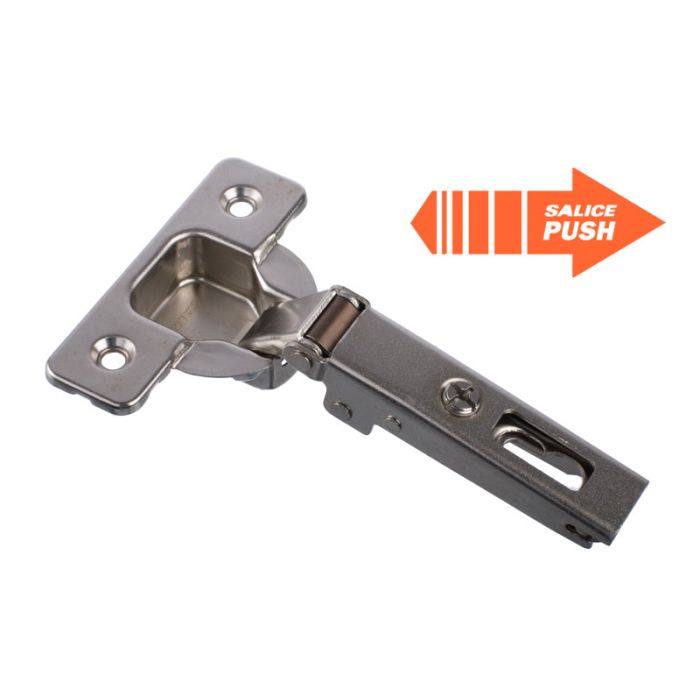

SALICE - Hinge Series Push 110° Full Overlay C2PPA99

SALICE Series Push 110° Concealed hinge for full overlay door, with negative spring 'Push to Open', C2PPA99. Must be combined with Release Device.

Technical information
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate and release device is not included and has to be ordered separately.
More Information
SKU201898
Weight (Kg)0.061000
K3-6 mm
Drilling depth11 mm
ø35 mm
H=H=15+K-(D)
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA110°
DP45 x 9,5
