SALICE - Hinge Series 700 110° Full Overlay C7P6DD9

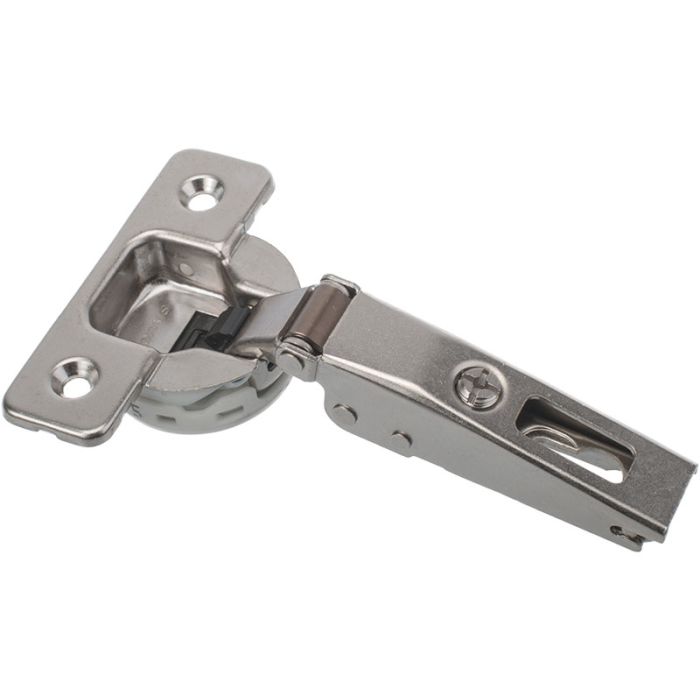

SALICE Series 700 110° Concealed hinge for full overlay door C7P6DD9.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
More Information
SKU202652
Weight (Kg)0.067000
K3-6 mm
Drilling depth13,5 mm
ø35 mm
H=H=10+K-(D)
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA110°
DP45 x 9,5
Downloads
pdf
(Size: 934.5 KB)
