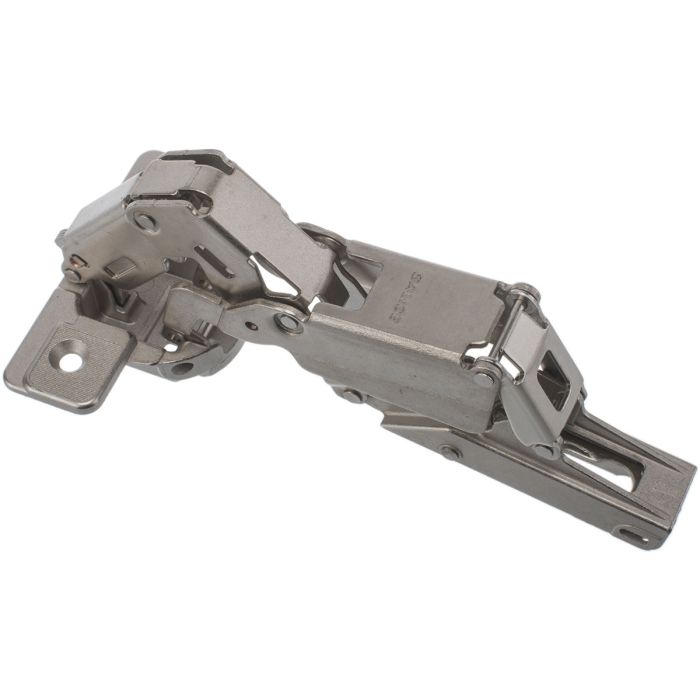

SALICE Series 200 165° Concealed hinge for full overlay door C2PFD99.
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
