SALICE Hinge Series 200 165° Full Overlay C2PFA99

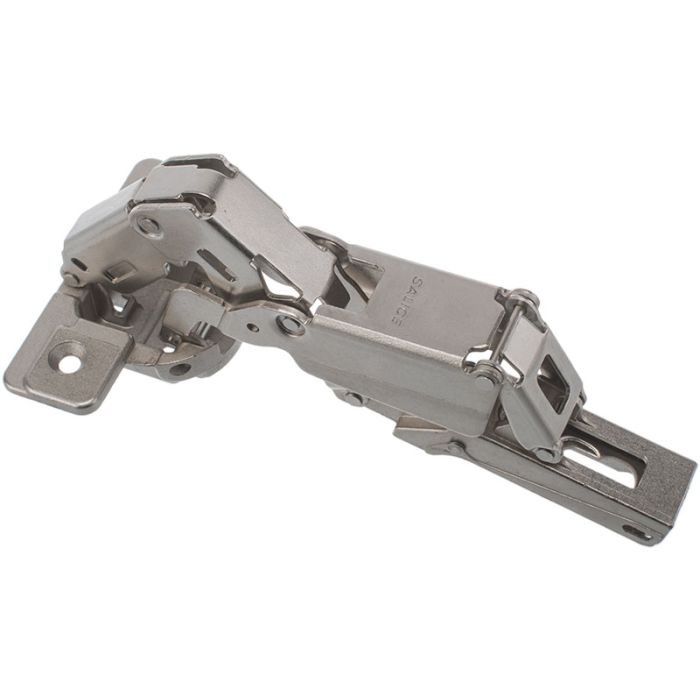

SALICE Series 200 165° Concealed hinge for full overlay door C2PFA99.

Technical information
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
More Information
SKU200064
Weight (Kg)0.162000
K3-8 mm
Drilling depth11 mm
ø35 mm
H=H=15+K-(D)
MaterialSteel / Zamak
FixingsWood Screw
FinishNickel Plated
OA165°
DP45 x 9,5
