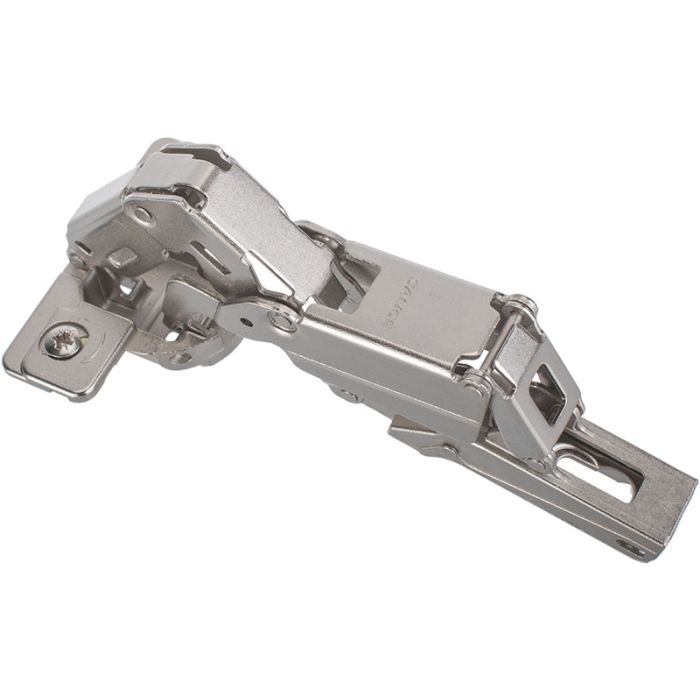

SALICE Hinge Series 200 165° Full Overlay C27EA99

SALICE Series 200 165° concealed unsprung hinge for full overlay door C27EA99.

Technical information
- 165° Opening angle
- Without spring
- Hole pattern: 45 x 9,5 mm
- Rapido fast mounting
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
More Information
SKU200464
Weight (Kg)0.158000
K3-8 mm
Drilling depth11 mm
ø35 mm
H=H=15+K-(D)
MaterialSteel / Zamak
FixingsRapido
FinishNickel Plated
OA165°
DP45 x 9,5
