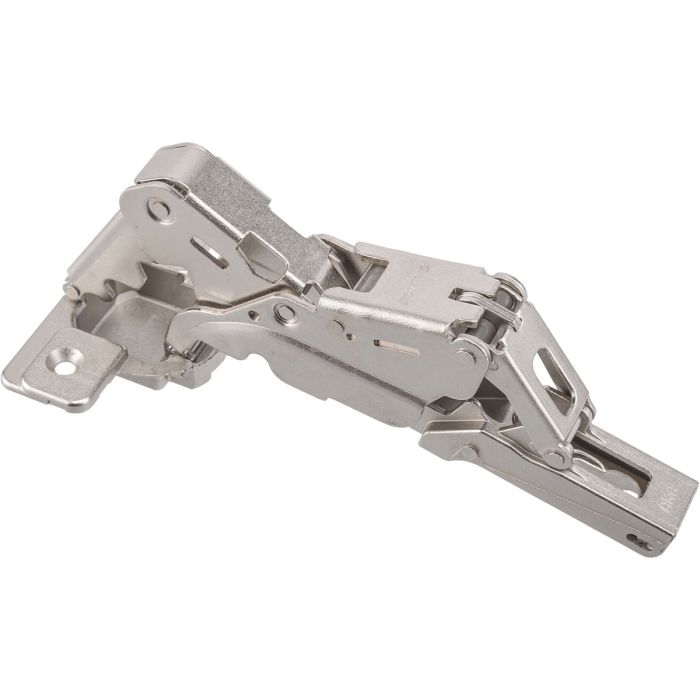

SALICE Hinge Series 200 155° Full Overlay C2PKA99

SALICE Series 200 155° Concealed hinge for full overlay door C2PKA99.

Technical information
- 155° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.

Additional Information

Additional Information

SKU 202795
Weight (Kg) 0.1620
K
3-8 mm
Drilling depth 8 mm
ø
35 mm
Material Steel / Zamak
Fixings
Wood Screw
Finish Nickel Plated
OA
155°
DP
45 x 9,5
