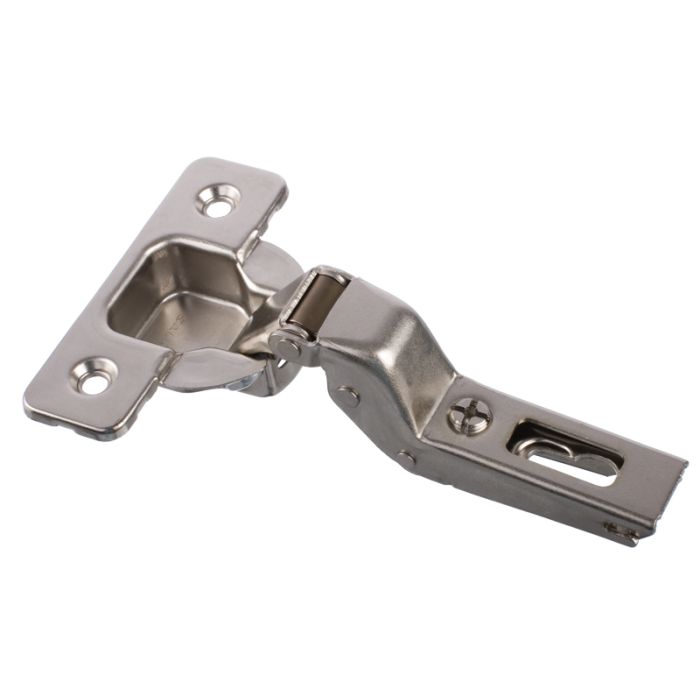

SALICE Hinge Series 200 110° Inset
SALICE Serie 200 Concealed hinge for inset door.
Technical information
- 110° Opening angle
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 110° Opening angle
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Product Name
Qty
SKU 200363
SKU 200776
SKU 208285
| K | 3-6 mm |
|---|---|
| Drilling depth | 11 mm |
| ø | 35 mm |
| Material | Steel |
| Finish | Nickel Plated |
| Opening angle | 110° |
