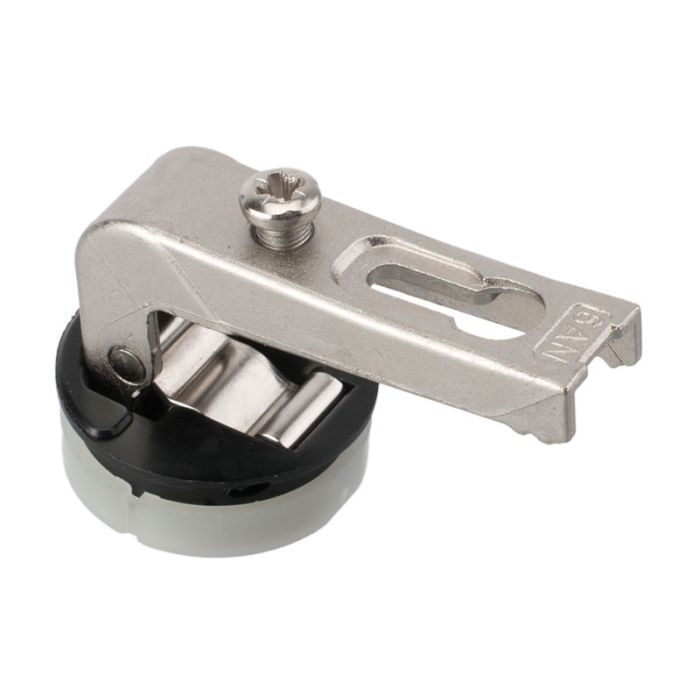

SALICE Glass Hinge Series 600 94° C6C7N39

SALICE Series 600 94° Concealed Glass Hinge for small spaces.

Technical information
- Hinge arm made of Steel Nickel Plated and cup made of plastic
- For glass between 4 and 6 mm thickness (Ø 26 mm)
- 94° Opening angle
- Possible drilling distance on the door (K): from 5,5 to 6,5 mm
- Fits only for mounting plate B2SGH (28 x 32)

Mounting- and decor/cover plate is not included and has to be ordered separately.

Additional Information

Additional Information

SKU 200617
Weight (Kg) 0.0410
K
5,5-6,5 mm
ø
26 mm
Material Steel
Finish Nickel Plated
OA
94°
