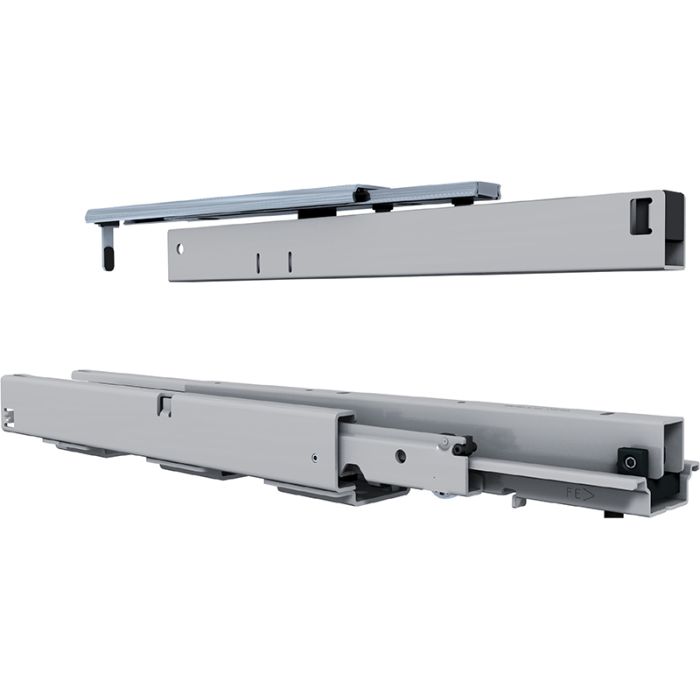

Pantry Pull Out Slide FR 775-A 75 Kg

Pantry Pull Out Slide FR 775-A made of Steel, white powder coated, Bottom Mount. Loading capacity dynamic up to 75 kg. Suitable for wooden or metal pantry units.

Specifications
- Progressive action full-extension pantry pull out slide with top slide
- Bottom Mounted
- Solid delrin rollers, delrin- encased steel ball bearings
- Capacity: dynamic up to 75 kg
- Integrated lateral and height adjustment
- Quick and easy installation through patented system
- Lengths available from 400 up to 750 mm
- Easy Close Device (ECD) integrated in top and bottom slide
- Recommended maximal cabinet height: 1500mm

Delivery time approx. 1-2 weeks
SKU Version Name EX
L
Price
209973 Pantry Pull Out Slide FR 775-A 75 Kg L=400 mm Pantry Pull Out Slide FR 775-A 75 Kg L=400 mm 385 mm 400 mm
209974 Pantry Pull Out Slide FR 775-A 75 Kg L=450 mm Pantry Pull Out Slide FR 775-A 75 Kg L=450 mm 435 mm 450 mm
209976 Pantry Pull Out Slide FR 775-A 75 Kg L=500 mm Pantry Pull Out Slide FR 775 75 Kg L=500 mm 485 mm 500 mm
208505 Pantry Pull Out Slide FR 775-A 75 Kg L=550 mm Pantry Pull Out Slide FR 775-A 75 Kg L=550 mm 535 mm 550 mm
208543 Pantry Pull Out Slide FR 775-A 75 Kg L=600 mm Pantry Pull Out Slide FR 775-A 75 Kg L=600 mm 585 mm 600 mm
209977 Pantry Pull Out Slide FR 775-A 75 Kg L=650 mm Pantry Pull Out Slide FR 775-A 75 Kg L=650 mm 635 mm 650 mm
209978 Pantry Pull Out Slide FR 775-A 75 Kg L=700 mm Pantry Pull Out Slide FR 775-A 75 Kg L=700 mm 685 mm 700 mm
208258 Pantry Pull Out Slide FR 775-A 75 Kg L=750 mm Pantry Pull Out Slide FR 775-A 75 Kg L=750 mm 735 mm 750 mm
