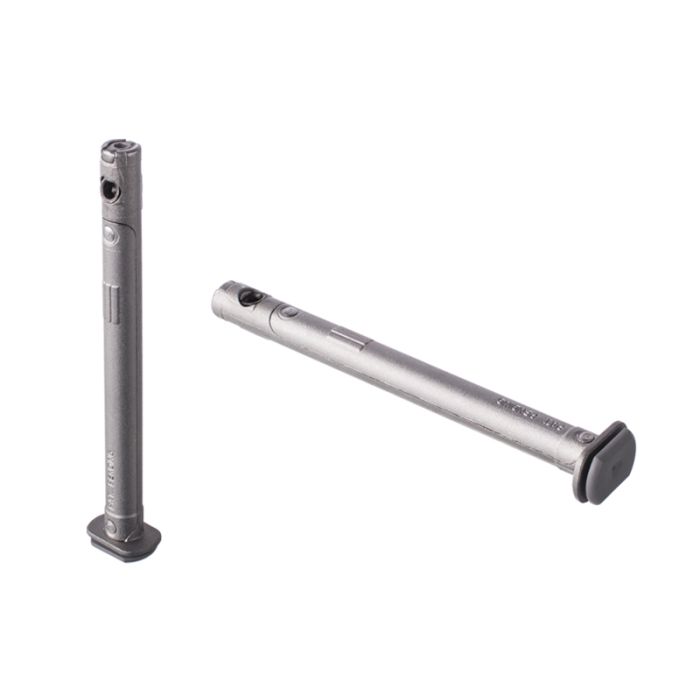

Leveller Rekord ø 12 mm
Rekord concealed leveller for sides min. 18 mm thick. Made of zinc alloy, engineering plastic and steel.
Suitable to align heavy duty wardrobes, bookcases and modular furnitures. It is placed to the bottom edge of the cabinet side and it is then adjustable through the Ø 8 mm access hole drilled to the inside cabinet side, by using a S4 mm allen wrench.
The engineering plastic glide is independent in order to make the adjustment easier and to prevent the scratching of the floor.
Features
- Made of zinc alloy, engineering plastic and steel.
- Loading capacity: 150 kg each.
- Very light and effortless adjustment.
- 12 mm adjustment
- It is available in four versions: hole centres 52, 70, 96, 120 mm.
Suitable to align heavy duty wardrobes, bookcases and modular furnitures. It is placed to the bottom edge of the cabinet side and it is then adjustable through the Ø 8 mm access hole drilled to the inside cabinet side, by using a S4 mm allen wrench.
The engineering plastic glide is independent in order to make the adjustment easier and to prevent the scratching of the floor.
Features
- Made of zinc alloy, engineering plastic and steel.
- Loading capacity: 150 kg each.
- Very light and effortless adjustment.
- 12 mm adjustment
- It is available in four versions: hole centres 52, 70, 96, 120 mm.
Product Name
Qty
SKU 200384
SKU 209146
SKU 209145
SKU 207893
