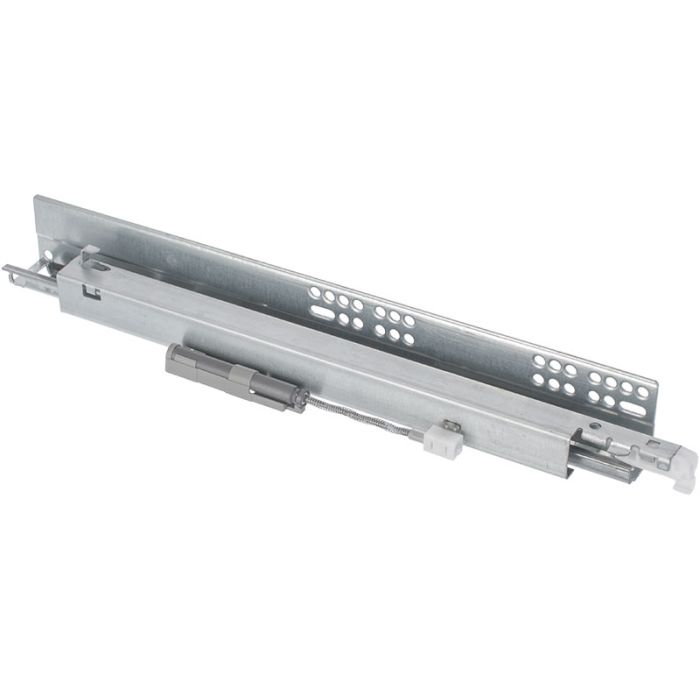

Futura 6558 Unica Full Extension Clip

Futura 6558 Unica - Full-Extension drawer runner fixed to the drawer by Clip. The Push self opening system is fully integrated into the runner. A slight pressure on the drawer frontal is sufficient for the drawer to open. The Smove decelerated closing action is also fully integrated into the runner.

Product features
- Dynamic load capacity N 294 (Kg 30).
- With "Smove" decelerated closing
- With Push to Open
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +2,5 mm with standard clip
- Drawer height adjustment +2.5 mm, side adjustment ±1.5 mm, depth adjustment ±2 mm with 3D clip
- The drawer is maintained parallel with the cabinet side during opening.
- Finish: bright zinc-plated.
- Sold in pairs

The Clip is not included and must be ordered separately.
Grouped product items
Product Name SKU Qty
Futura Unica 6558 Clip L=300 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 300 mm
  • Length: 300 mm
207911
Futura Unica 6558 Clip L=350 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 350 mm
  • Length: 350 mm
207912
Futura Unica 6558 Clip L=400 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 400 mm
  • Length: 400 mm
207913
Futura Unica 6558 Clip L=450 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 450 mm
  • Length: 450 mm
207914
Futura Unica 6558 Clip L=500 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 500 mm
  • Length: 500 mm
207915
More Information
SKU6558
Load capacityDynamic up to 30 kg
Downloads
pdf
(Size: 2.8 MB)

Clip compatible with Futura Drawer Slides
