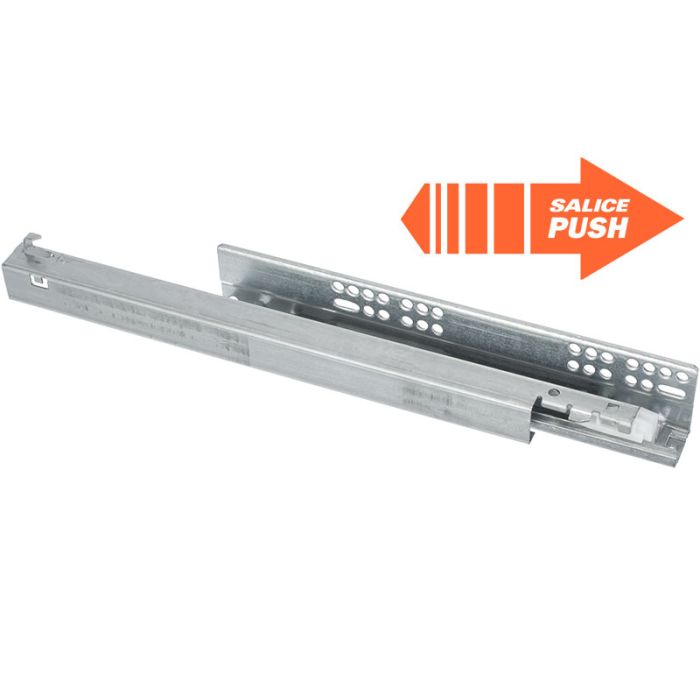

Futura 6557 Push Full Extension Clip

Futura 6557 Push - Full-Extension drawer runner fixed to the drawer by Clip. With integrated 'Push to Open' system. A slight pressure of the drawer frontal is sufficient for the drawer to self-open.

Product features
- Dynamic load capacity N 294 (Kg 30).
- 'Push to Open' integrated
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +2,5 mm with standard clip
- Drawer height adjustment +2.5 mm, side adjustment ±1.5 mm, depth adjustment ±2 mm with 3D clip
- The drawer is maintained parallel with the cabinet side during opening.
- Compatible with ART. 6157
- Finish: bright zinc-plated.

The Clip is not included and must be ordered separately.
Grouped product items
Product Name SKU Qty
Futura 6557 Push L=270 mm

Attributes:

  • Extension: 270 mm
  • Length: 270 mm
203340
Futura 6557 Push L=300 mm

Attributes:

  • Extension: 300 mm
  • Length: 300 mm
208009
Futura 6557 Push L=350 mm

Attributes:

  • Extension: 350 mm
  • Length: 350 mm
207757
Futura 6557 Push L=400 mm

Attributes:

  • Extension: 400 mm
  • Length: 400 mm
203301
Futura 6557 Push L=450 mm

Attributes:

  • Extension: 450 mm
  • Length: 450 mm
204332
Futura 6557 Push L=500 mm

Attributes:

  • Extension: 500 mm
  • Length: 500 mm
203883
Futura 6557 Push L=550 mm

Attributes:

  • Extension: 550 mm
  • Length: 550 mm
219343
Futura 6557 Push L=600 mm

Attributes:

  • Extension: 600 mm
  • Length: 600 mm
209668
More Information
SKU6557
UnitPar
FeaturePush to Open
Load capacityDynamic up to 30 kg
Downloads

Clip compatible with Futura Drawer Slides
