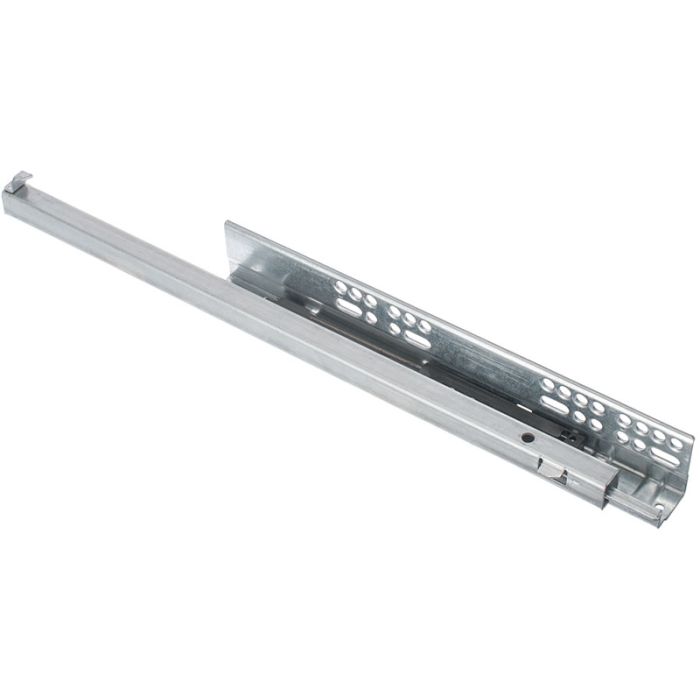

Futura 6155 Smove Part Extension Clip

Futura 6155 Smove - Part-Extension drawer runner fixed to the drawer by Clip. With integrated Soft Close "Smove".

Product features
- Dynamic load capacity N 294 (Kg 30).
- With "Smove" decelerated closing.
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +2,5 mm with standard clip
- The drawer is maintained parallel with the cabinet side during opening.
- Compatible with ART. 6555
- Finish: bright zinc-plated

The Clip is not included and must be ordered separately.
Grouped product items
Product Name SKU Qty
Futura 6155 Smove L=270 mm

Attributes:

  • Extension: 181 mm
  • Length: 270 mm
208480
Futura 6155 Smove L=300 mm

Attributes:

  • Extension: 211 mm
  • Length: 300 mm
203863
Futura 6155 Smove L=350 mm

Attributes:

  • Extension: 261 mm
  • Length: 350 mm
203312
Futura 6155 Smove L=400 mm

Attributes:

  • Extension: 311 mm
  • Length: 400 mm
203864
Futura 6155 Smove L=450 mm

Attributes:

  • Extension: 361 mm
  • Length: 450 mm
208951
Futura 6155 Smove L=500 mm

Attributes:

  • Extension: 381 mm
  • Length: 500 mm
203865
Futura 6155 Smove L=550 mm

Attributes:

  • Extension: 431 mm
  • Length: 550 mm
209659
More Information
SKU6155
UnitPar
MaterialSteel
FeatureSoft Close
Load capacityDynamic up to 30 kg
Downloads

Clip compatible with Futura Drawer Slides
