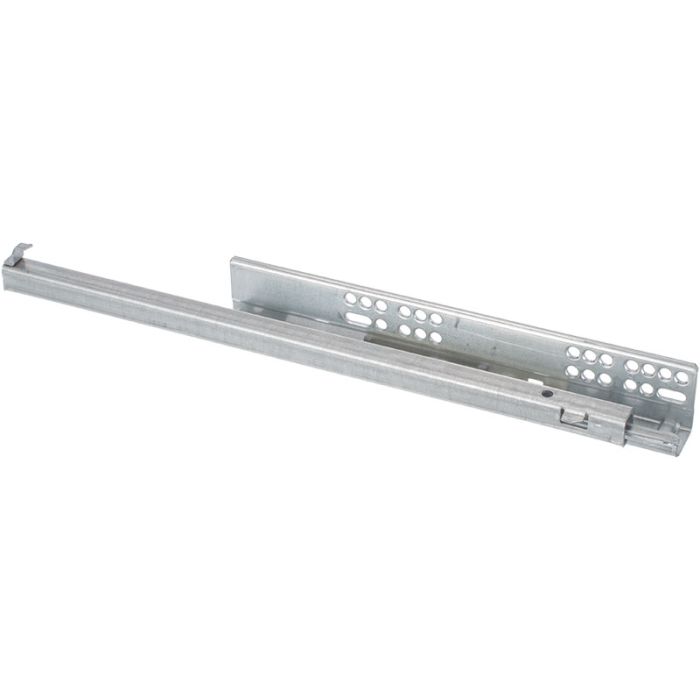

Futura 615 Part Extension Clip

Futura 615 - Part-Extension drawer runner with self-closing, fixed to the drawer by Clip.

Product features
- Dynamic load capacity N 294 (Kg 30).
- With Self-Closing
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +2,5 mm with standard clip
- The drawer is maintained parallel with the cabinet side during opening.
- Compatible with ART. 655.
- Finish: bright zinc-plated.

The Clip is not included and must be ordered separately.
Grouped product items
Product Name SKU Qty
Futura 615 Clip L=250 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 161 mm
  • Length: 250 mm
207760
Futura 615 Clip L=300 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 211 mm
  • Length: 300 mm
207761
Futura 615 Clip L=350 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 261 mm
  • Length: 350 mm
207762
Futura 615 Clip L=400 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 311 mm
  • Length: 400 mm
207763
Futura 615 Clip L=450 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 361 mm
  • Length: 450 mm
207764
Futura 615 Clip L=500 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 381 mm
  • Length: 500 mm
207765
Futura 615 Clip L=550 mm

Attributes:

  • Unit: 1 Pair
  • Extension: 431 mm
  • Length: 550 mm
207766
More Information
SKU615
Load capacityDynamic up to 30 kg
Downloads
pdf
(Size: 656.3 KB)

Clip compatible with Futura Drawer Slides
