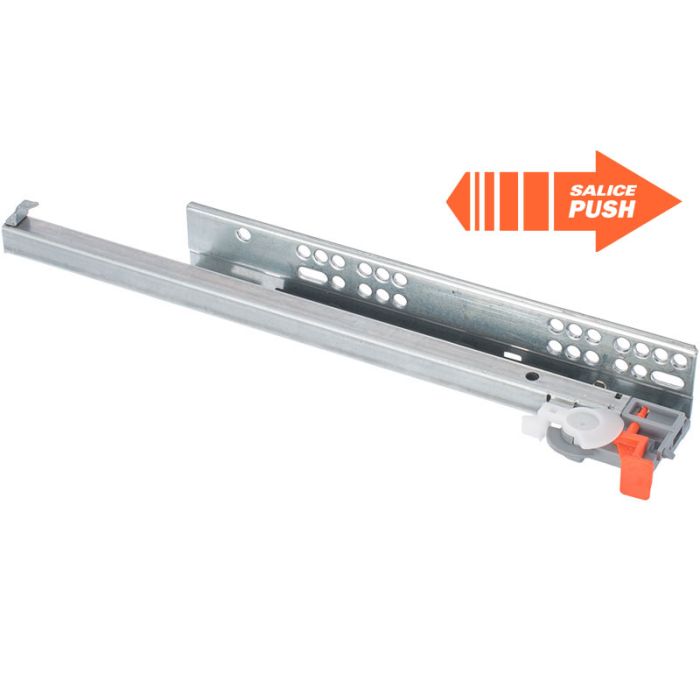

Futura 6127 Push Part Extension Pin
Futura 6127 Push - Part-Extension drawer runner fixed to the drawer by Pin. With integrated 'Push to Open' system. A slight pressure of the drawer frontal is sufficient for the drawer to self-open.
Product features
- Dynamic load capacity N 294 (Kg 30).
- 'Push to Open' integrated
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +3 mm
- Drawer depth adjustment +/-2 mm
- The drawer is maintained parallel with the cabinet side during opening.
- Compatible with ART. 6527
- Finish: bright zinc-plated.
Product features
- Dynamic load capacity N 294 (Kg 30).
- 'Push to Open' integrated
- Safety system that prevents the drawers from turning over.
- Drawer height adjustment +3 mm
- Drawer depth adjustment +/-2 mm
- The drawer is maintained parallel with the cabinet side during opening.
- Compatible with ART. 6527
- Finish: bright zinc-plated.
Product Name
Qty
SKU 202420
SKU 203245
SKU 202627
SKU 202374
SKU 202528
SKU 202159
SKU 203218
SKU 203150
| Feature | Push to Open |
|---|---|
| Load capacity | Dynamic up to 30 kg |
| Material | Steel, galvanized |
| Loading Capacity | 30 kg |
