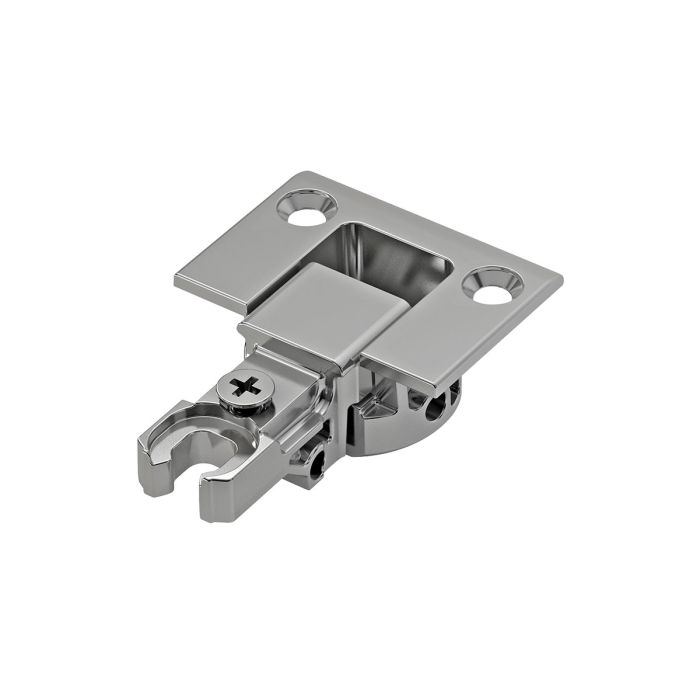

Flap Hinge KIMANA

KIMANA flap hinge to open and close flap and drop-down doors. Provided with a unique and exclusive movement, it allows to open cabinet doors in column, even when the cabinet bottom lies upon another panel or the cabinet top is surmounted by a decorative/lighting panel.
SKUKIMANA Flap Hinge
208024KIMANA Flap Hinge
SKUKIMANA Plate
208453KIMANA Plate
SKUKIMANA Cover Cap
208454KIMANA Cover Cap
The small dimensions (Ø 26mm boring for both the door and the bottom), the minimalistic and elegant design contribute to make KIMANA not only a functional hinge, but also a product unique in its genre. The fixing screws are perpendicular, thus making KIMANA suitable for perfect positioning, as well as for aluminium profiles. KIMANA can be easily adjusted through the screws (PZ2) which are hidden underneath the cover. Various door and cabinet thickness-combinations can be solutioned either by carrying out the adjustments of the Kimana.
More Information
SKU208024-1
ø26 mm
MaterialZamak
FinishNickel Plated
Downloads
pdf
(Size: 2.1 MB)
