Pantry Pull Out Slide FR 771 120 Kg

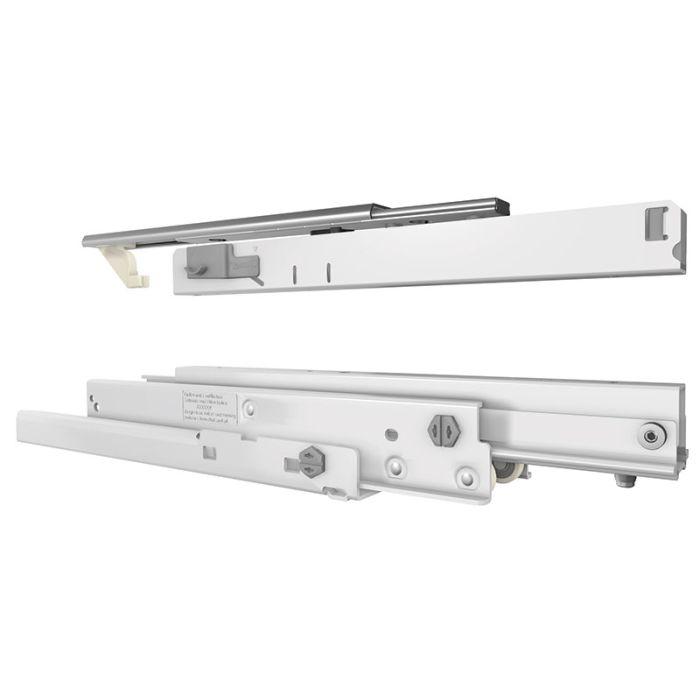

Pantry Pull Out Slide FR 771 made of Steel, white powder coated, Bottom Mount. Loading capacity: dynamic up to 120 kg. Suitable for Wood Pantry Units or other special applications made of wood.

Specifications
- Progressive action full-extension pantry pull out slide with top slide, Bottom Mounted
- Solid delrin rollers, delrin- encased steel ball bearings
- Capacity: dynamic up to 120 kg
- Integrated lateral and height adjustment
- Quick and easy installation
- LGA-tested according to DIN 4554 standard at 50,000 cycles
- Lengths available from 400 up to 750 mm
- Easy Close System FR 771 ECD optional

Delivery time approx. 1-2 weeks
SKU Version Name EX
L
Price
210190 Pantry Pull Out Slide FR 771 120 kg L=400 mm Pantry Pull Out Slide FR 771 120 kg L=400 mm 384 mm 400 mm
210191 Pantry Pull Out Slide FR 771 120 kg L=450 mm Pantry Pull Out Slide FR 771 120 kg L=450 mm 434 mm 450 mm
210192 Pantry Pull Out Slide FR 771 120 kg L=500 mm Pantry Pull Out Slide FR 771 120 kg L=500 mm 484 mm 500 mm
210193 Pantry Pull Out Slide FR 771 120 kg L=550 mm Pantry Pull Out Slide FR 771 120 kg L=550 mm 534 mm 550 mm
210194 Pantry Pull Out Slide FR 771 120 kg L=600 mm Pantry Pull Out Slide FR 771 120 kg L=600 mm 584 mm 600 mm
210195 Pantry Pull Out Slide FR 771 120 kg L=650 mm Pantry Pull Out Slide FR 771 120 kg L=650 mm 634 mm 650 mm
210196 Pantry Pull Out Slide FR 771 120 kg L=700 mm Pantry Pull Out Slide FR 771 120 kg L=700 mm 684 mm 700 mm
210197 Pantry Pull Out Slide FR 771 120 kg L=750 mm Pantry Pull Out Slide FR 771 120 kg L=750 mm 734 mm 750 mm

Additional Information

Additional Information

SKU 210190-1
Unit Styck
